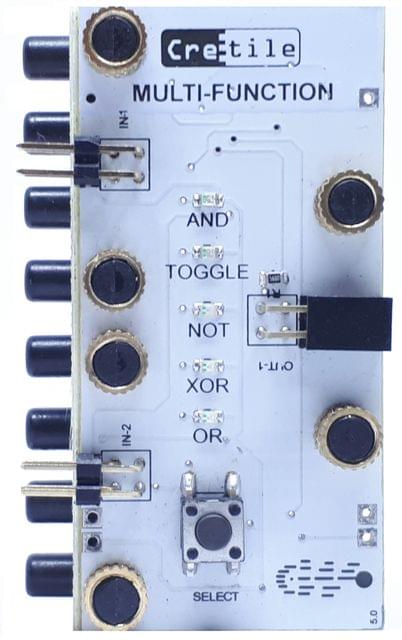

Cretile Multi-function

Cretile Multi-Function provides functions of Logic Gates and Toggle Function. Logic Gate Functions such as (1) AND (2) NOT (3) XOR & (4) OR is available. With Toggle function you can change the output from ON to OFF or from OFF to ON with a switch connected at Input 1.

Function Input – 1 Input -2
AND Yes Yes
TOGGLE Yes No
NOT Yes No
XOR Yes Yes
OR Yes Yes

Logic Gates functionality
GATE AND NOT XOR OR
IN1 IN2 OUT IN1 IN2 OUT IN1 IN2 OUT IN1 IN2 OUT
Input 1 ON ON ON ON - OFF ON ON OFF ON ON ON
Input 2 ON OFF OFF OFF - ON ON OFF ON ON OFF ON
OFF ON OFF OFF ON ON OFF ON ON
OFF OFF OFF OFF OFF OFF OFF OFF OFF


Toggle Function:
Toggle reverses the current output. So, if the current output is ON, after giving input-1 as ON, the output will be turned OFF and vice-a-versa.
Make & learn: Connect Cretile Push Switch to Input-1 and Cretile Light to Output-1. Initially the Light will remain off. Once you press the Push Switch the Light will switch ON. If you press the Push Switch, the output will switch OFF. So, output toggles between ON and OFF.
